NWA NetWarrior : STANAG 4695, GOSSRA, breakaway
• BREAKAWAY • COMPACT & LIGHT SHELL • POWER & USB 2.0 • STANAG 4695 | GOSSRA

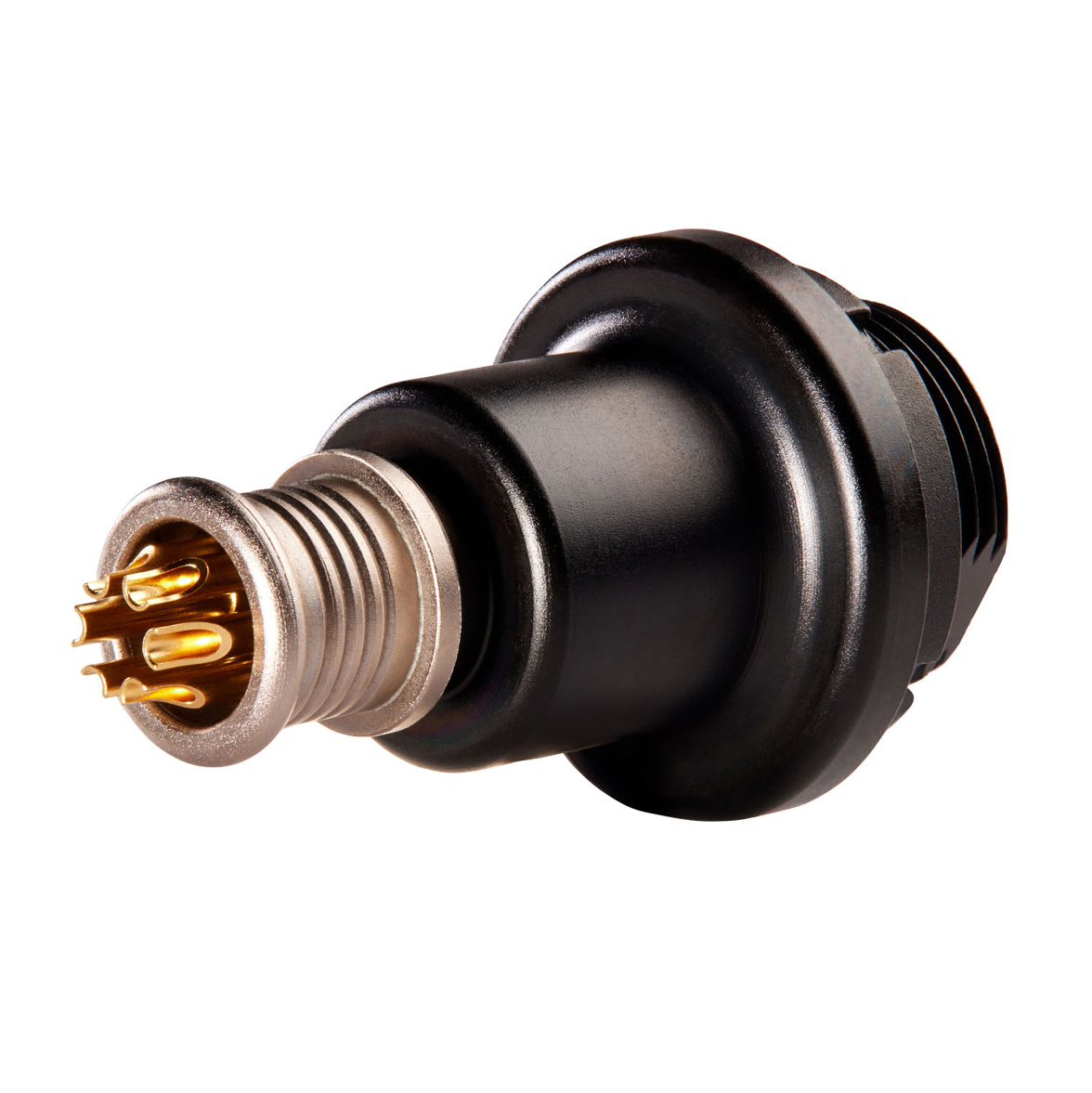

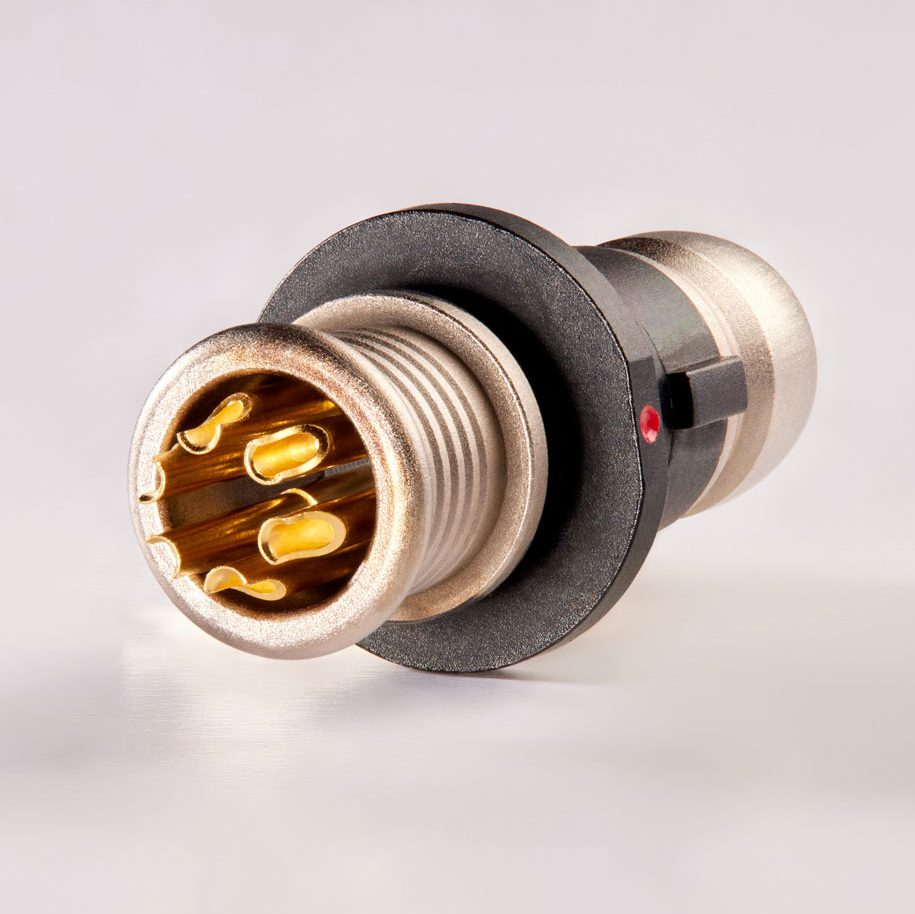

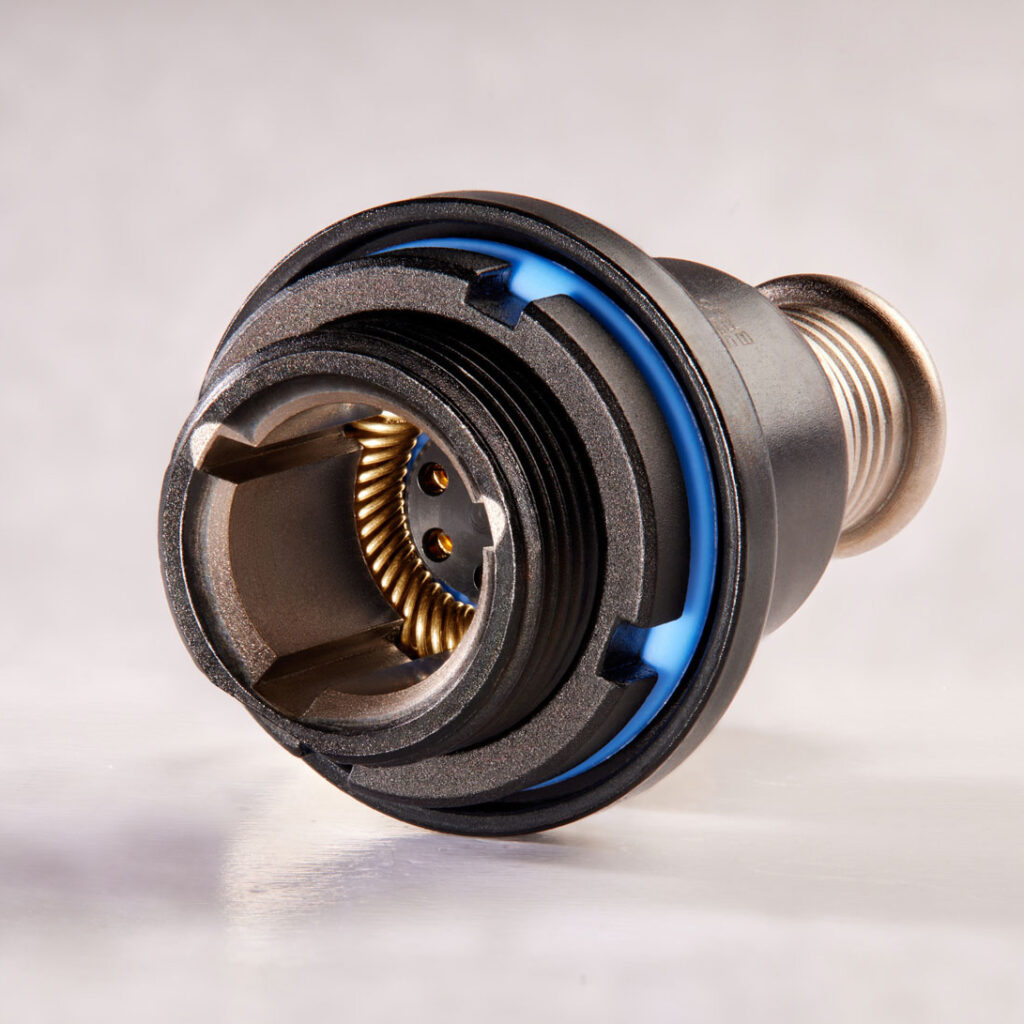

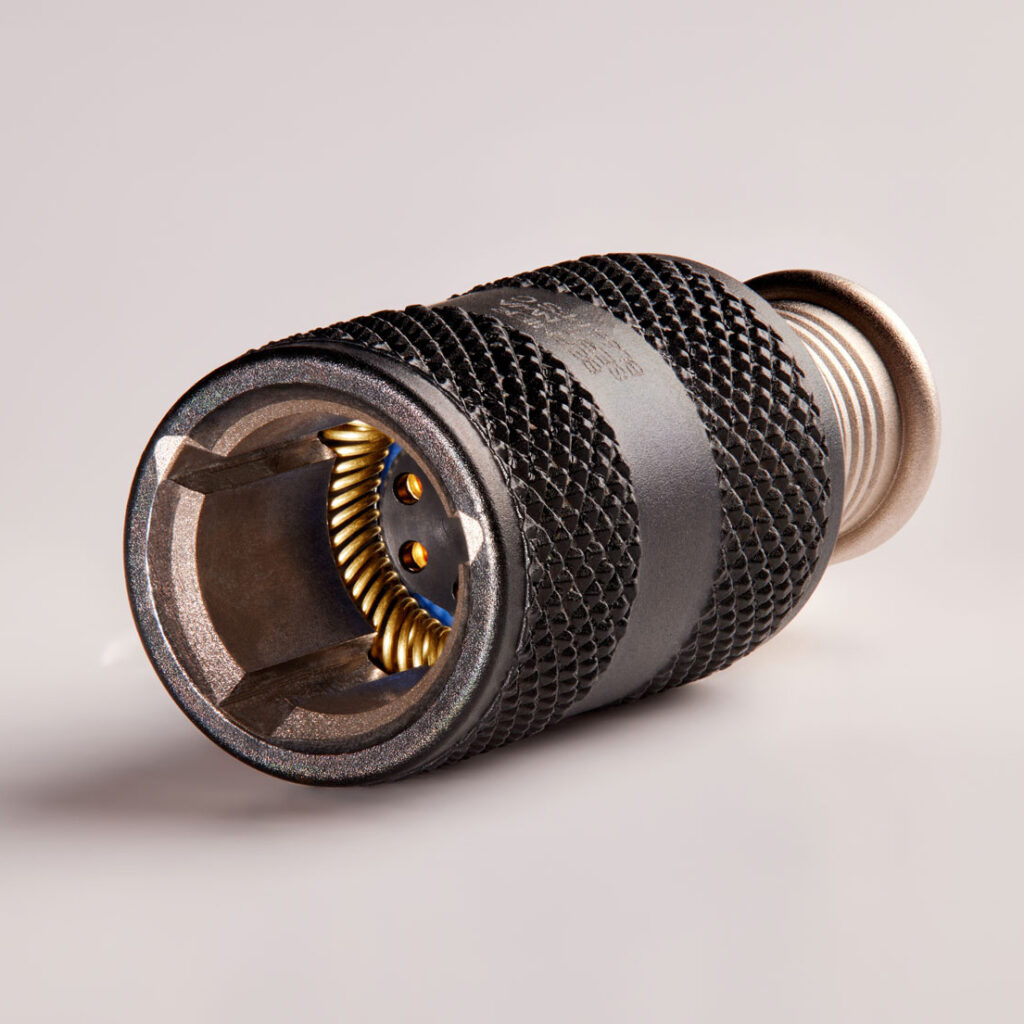

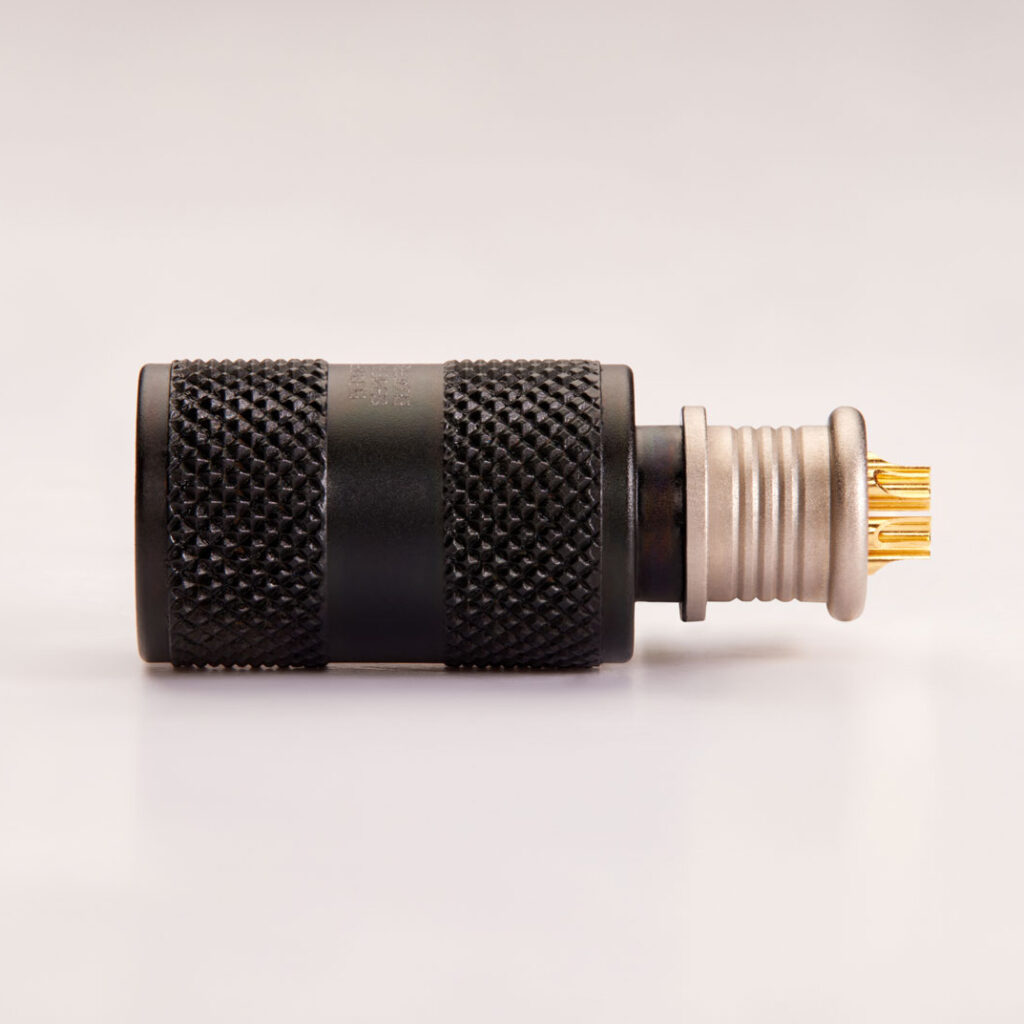

The NWA (NetWarrior) connector is BERNIER Connect’s solution for NATO-compliant soldier systems. Compatible with STANAG 4695, GOSSRA, and Nett Warrior architecture, it combines power and USB 2.0 data transmission in a lightweight aluminum breakaway connector — designed specifically for dismounted soldier equipment and wearable tactical systems.
NATO-compliant connector for dismounted soldier systems
The NWA meets the specific requirements of modern infantry equipment: lightweight aluminum construction to reduce carry weight, breakaway locking with a calibrated 55N ± 15N disconnect force to protect equipment from accidental cable pulls, and full EMI/RFI protection across 2 MHz to 10 GHz. Its compliance with STANAG 4695, VG96934, VG95351, GOSSRA, and Nett Warrior makes it directly interoperable with NATO-standard soldier system architectures.
BREAKAWAY
COMPACT & LIGHT
EMC REINFORCEMENT
MECHANICAL AND CLIMATIC CHARACTERISTICS
| Locking | Breakaway |
| Operating temperature | -40°C to/à +75°C |
| Nbr of mating-unmating cycles | up to 2 000 cycles |
| Sealing | IP68 (1m/1h) connected / disconnected |
| Corrosion resistance (Salt spray) | Stainless steel : 96 hours |
| Break-away force | 55N +/- 15N |
ELECTRICAL CHARACTERISTICS
| Nbr. of contacts | 6 contacts | 7 contacts |
| Gauge - AWG | 22 26 |
| Types of contacts | Solder cup - Crimp terminals |
| Operating voltage | < 50 VAC |
| Current rating per contact | 5A |
| Voltage drop | < 85 mV for appliad load of 3A at 16VDC |
| Insulating resistance | > 100 MΩ under 500VDC |
| EMI RFI Protection | YES 50V/m across a span of 2-10000MHz |
MATERIALS
| Connector shell | Aluminum |
| Connector shell plating | Black Zinc Nickel |
| Insert | Thermoplastic |
| Contacts | Copper alloy plated with gold over nickel |
| Shielding ring | Stainless steel |
| Seals | Fluorosilicone |
- Last update:10/05/2026
- Norme(s) : NETTWARRIOR, STANAG 4695, GOSSRA
APPLICATIONS
- Dismounted soldier systems: wearable power and data distribution
- Tactical portable radios and communication devices
- SDR systems compatible with NATO soldier system architecture
- C4ISR: portable squad-level equipment (PDU, CWB, tactical displays)
