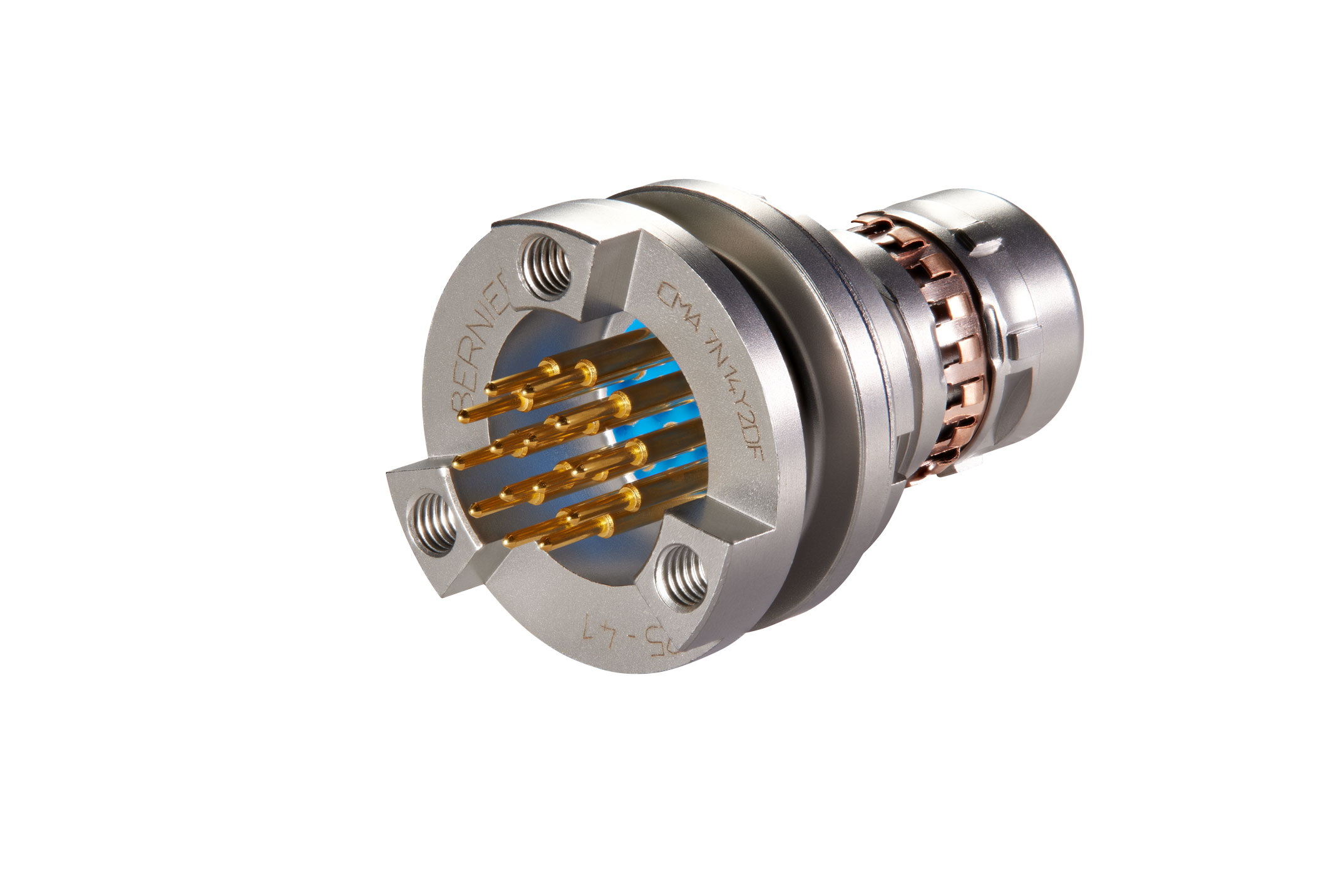

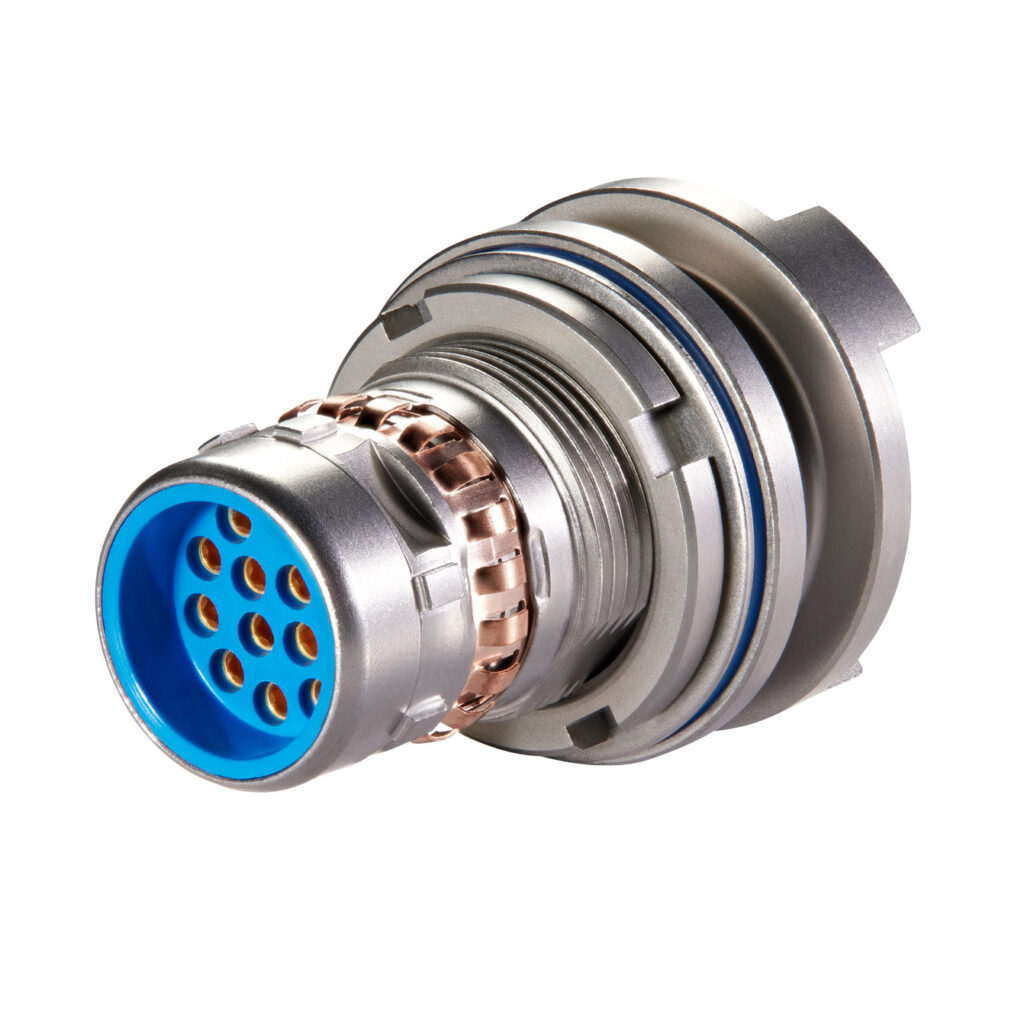

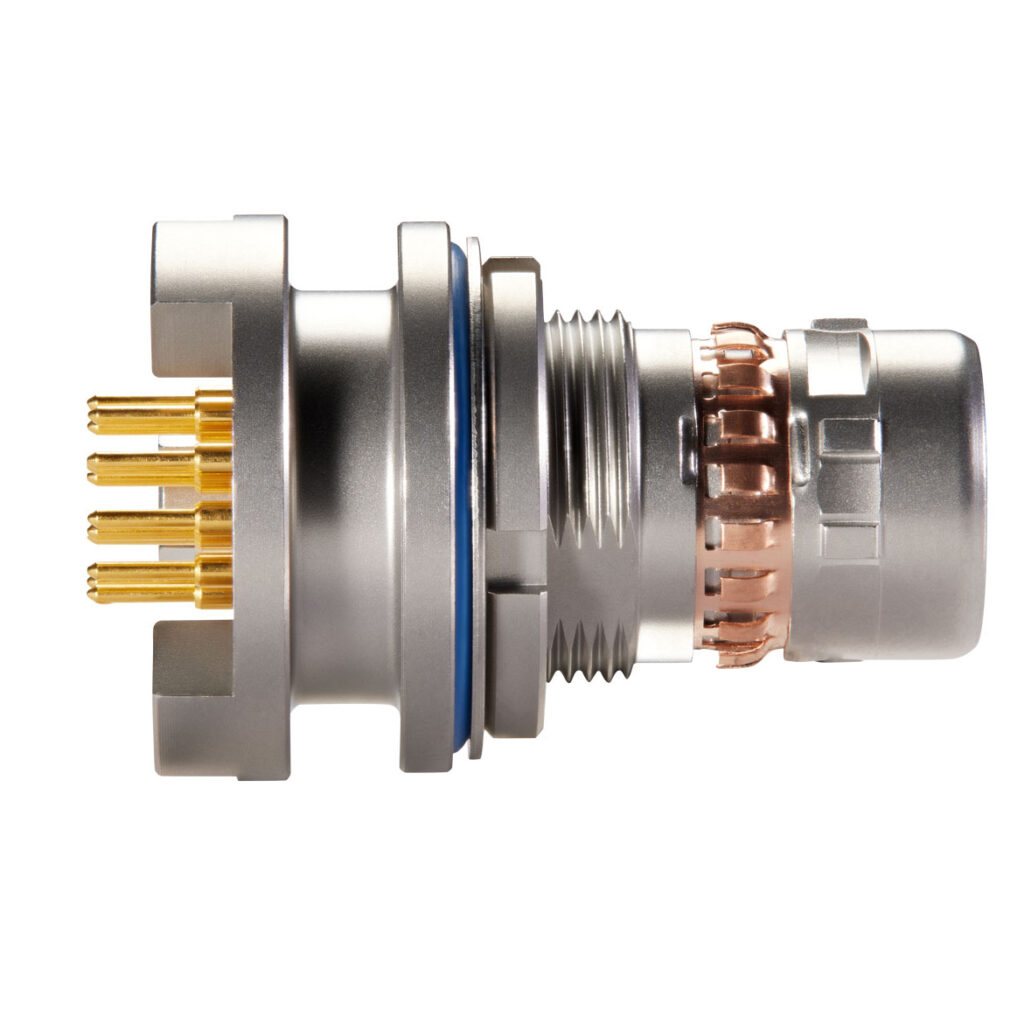

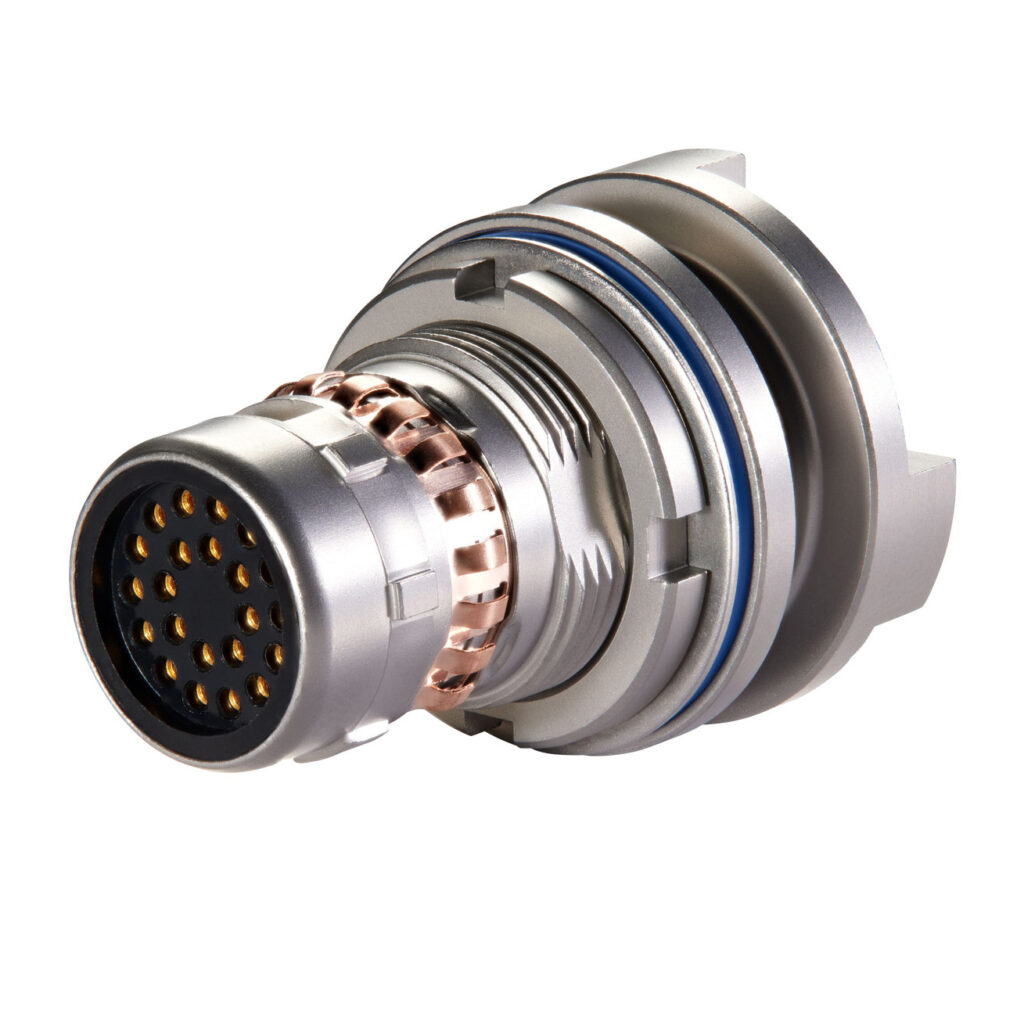

CMA Standoff
Reinforced receptacle for secure PCB mounting
• STANDOFF RECEPTACLE • HIGH CONTACT DENSITY • SECURE FIXATION • EMI-RFI PROTECTION
The CMA Standoff is a reinforced PCB-mount receptacle derived from the CMA series. Its standoff design — with integrated screw fixing for secure fixation — ensures a stable, vibration-resistant installation on rugged equipment panels. Stainless steel, IP68, and EMI/RFI shielded, it is designed for high-density PCB integration in demanding environments.
Secure PCB fixation and high contact density for panel-mounted applications
Where standard receptacles can loosen under vibration or mechanical stress, the CMA Standoff provides reinforced PCB fixation through its screw fixing secured standoff mount. This makes it particularly suited to rugged equipment where connection integrity under continuous vibration is a requirement. Available with 14 or 22 contacts in PCB pin termination, it supports high-density signal integration directly onto PCB.
EMI-RFI PROTECTION
SECURE FIXATION
HIGH CONTACT DENSITY
MECHANICAL AND CLIMATIC CHARACTERISTICS
| Locking | Push-pull, Breakaway |
| Operating temperature | -55°C to +125°C |
| Nbr of mating-unmating cycles | up to 10 000 cycles (Push-pull - 14 contacts) up to 2000 cycles (Breakaway) & 5000 cycles (22 contacts) |
| Sealing | IP68 connected and disconnected |
| Corrosion resistance (Salt spray) | Stainless steel : 96 hours |
| Fluid resistance | Hydrocarbon and oils |
ELECTRICAL CHARACTERISTICS
| Nbr. of contacts | 14 | 22 |
| Gauge - AWG | 22 | 26 |
| Types of contacts | PCB pins | |
| Operating voltage | 60Vmax | |
| Current rating per contact | 1,5 A max | 2 A max |
| Contact resistance | ≤ 10 mΩ | |
| Insulating resistance | > 1000 MΩ under 500VDC | |
| Crosstalk | 80 dB at 8 kHz | |
| Dielectric strength | 500 Veff at/à 50 Hz | |
| EMI RFI Protection | Yes | |
MATERIALS
| Connector shell | Standard : Stainless steel Option : Marine stainless steel and Marine bronze |
|
| Connector shell plating | Sandblasting |
|
| Insert | Thermosetting | PBT |
| Contacts | Copper alloy plated with gold overnickel |
|
| Shielding ring | Beryllium copper | |
- Last update:10/05/2026
APPLICATIONS
- Rugged computers and embedded electronics requiring vibration-resistant PCB connections
- Land defense: SDR radios, C4ISR systems, vehicle-mounted platforms
- Avionics and onboard electronics with space-constrained PCB integration
- Industrial equipment panels exposed to sustained mechanical stress
